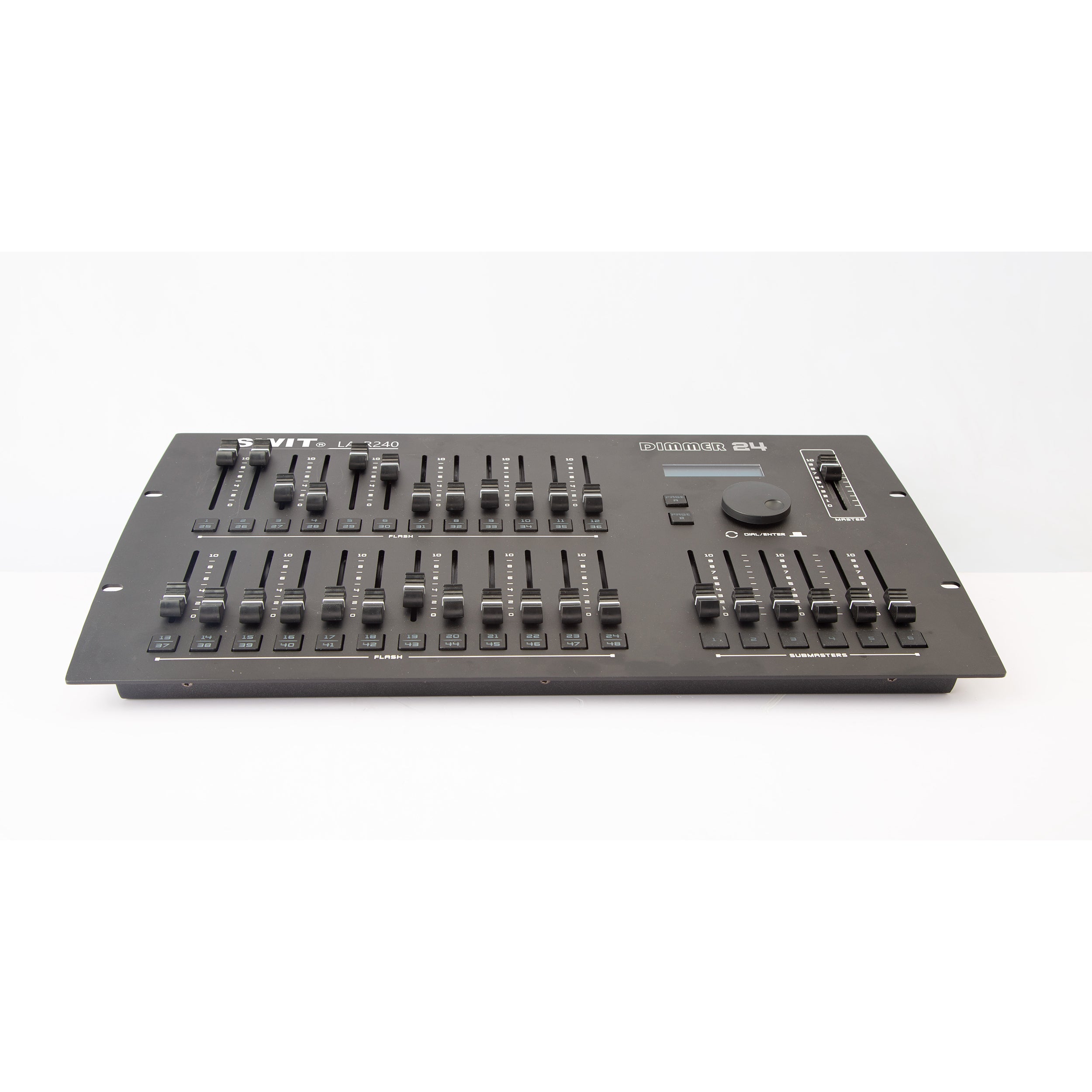

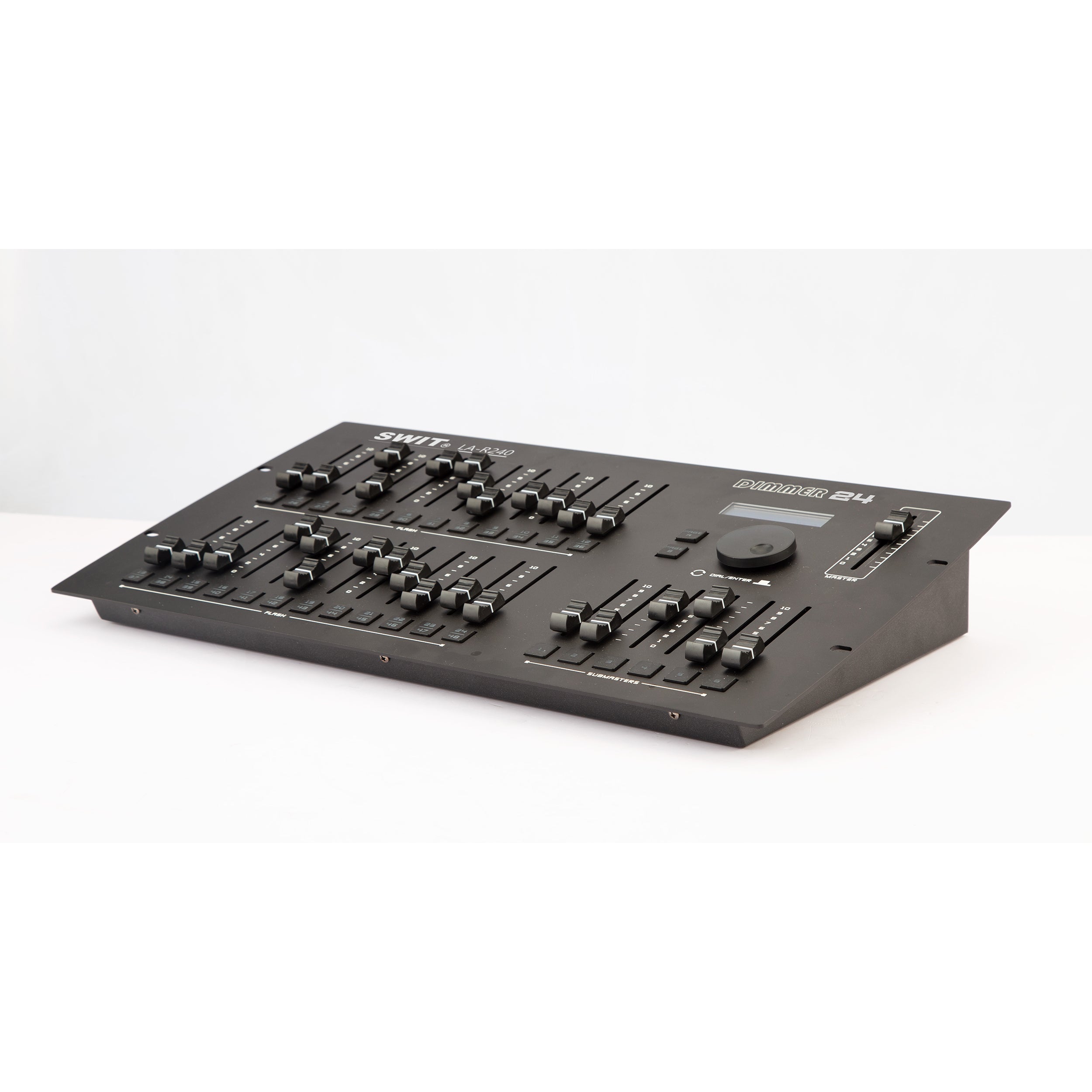

The SWIT LA-R240 is a professional 24-channel DMX512 lighting console designed for broadcast studios, theatres, and stage productions. Featuring an intuitive layout with individual channel sliders, submaster controls, and a master slider, it allows for precise lighting adjustments. The expandable serial connection supports up to four linked units, providing control of up to 96 DMX channels. With an LCD display for real-time DMX monitoring, flash control buttons, and RS232 remote control support, the SWIT LA-R240 light console is built to handle professional lighting setups with efficiency and reliability.

Precise DMX Control with 24 Individual Sliders

The SWIT LA-R240 light console provides 24 dedicated channel sliders, giving users direct control over each DMX lighting fixture. This ensures smooth dimming, precise adjustments, and the ability to create dynamic lighting effects. Each slider corresponds to a DMX channel, allowing operators to fine-tune brightness levels and transitions effortlessly.

Submaster and Master Controls for Group Adjustments

In addition to the 24 individual sliders, the LA-R240 theatre lighting console includes six submaster sliders that allow users to group multiple channels together for simultaneous control. This is particularly useful for managing sections of a stage or studio lighting setup. The master slider provides global control over all active channels, ensuring quick and easy adjustments to the overall lighting intensity.

Expandable to 96 Channels via Serial Connection

For larger lighting setups, the LA-R240 DMX lighting controller can be linked with up to four additional units via RJ45 serial connections, expanding its capabilities to 96 channels. The master unit controls channels 1-24, while slave units manage channels 25-48, 49-72, and 73-96. This modular approach makes the console adaptable for small and large-scale productions alike.

Real-Time DMX Monitoring on LCD Display

The built-in LCD screen provides real-time feedback on DMX channel values, ensuring accurate monitoring of lighting settings. Additionally, fine adjustment (+/-) buttons allow users to precisely tune the intensity of each channel beyond what is possible with the physical sliders alone.

Flash Control Buttons for Instant Effects

Each channel slider is accompanied by a dedicated flash button, enabling instant activation of individual lights at full brightness. This feature is ideal for creating quick bursts of light, strobe effects, or emphasising specific moments in live performances.

Versatile Connectivity and Rack-Mountable Design

The LA-R240 is equipped with 3-pin XLR DMX input and output ports (1x male, 1x female) for seamless integration into existing lighting systems. It supports PowerCON AC 88-256V 50/60Hz power input with a loop output for daisy-chaining multiple units. The 19-inch rack-mountable design ensures easy installation in professional setups.

The SWIT LA-R240 24-Channel DMX512 Light Console is a versatile and expandable lighting controller, ideal for broadcast studios, theatres, and stage productions. With 24 individual sliders, submaster grouping, master control, and real-time DMX monitoring, it delivers precise and efficient lighting management. The expandable serial connection allows for up to 96 channels, making it suitable for both small and large-scale productions. Whether used as a standalone unit or as part of a multi-console system, the SWIT LA-R240 provides reliable, professional-grade lighting control for any application.
