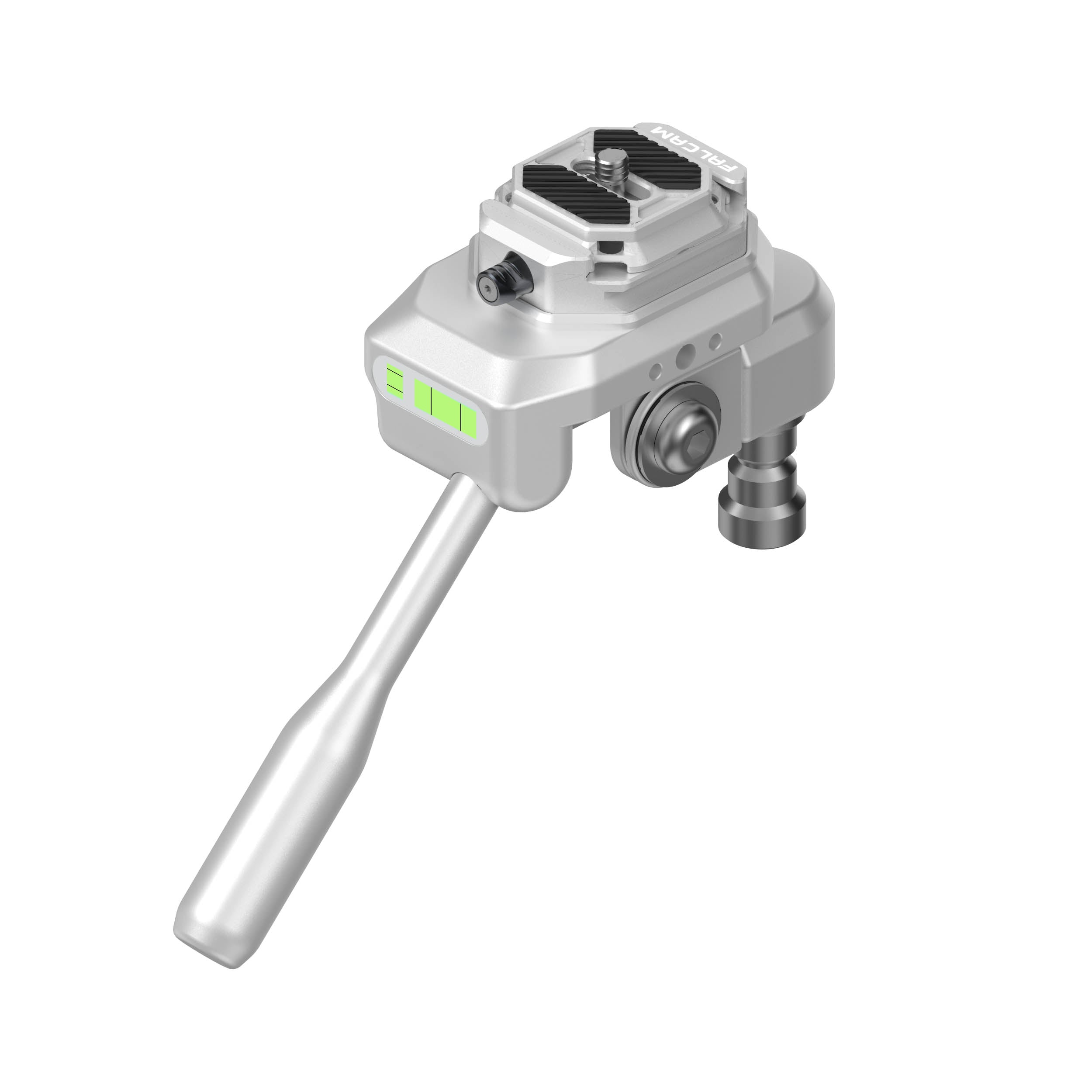

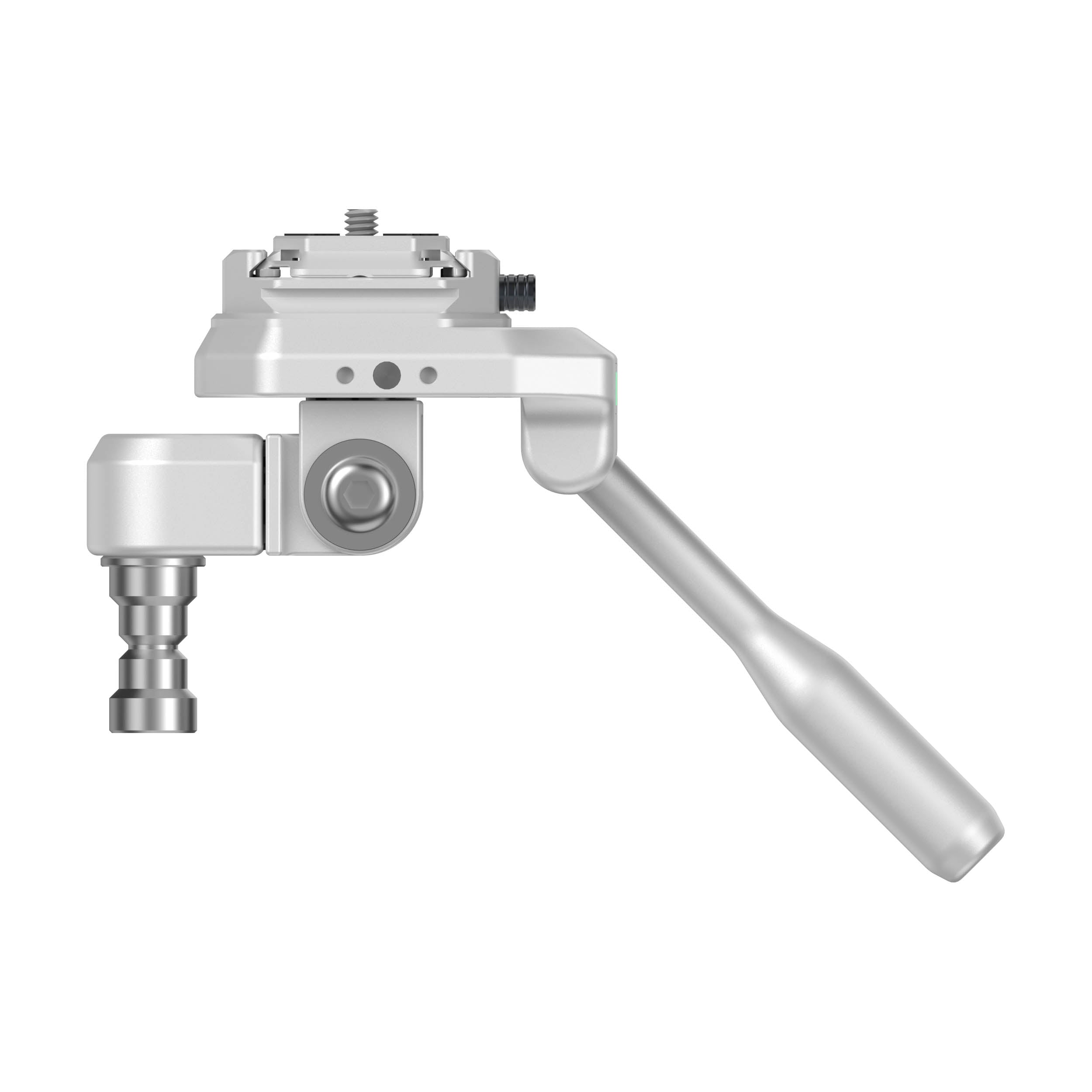

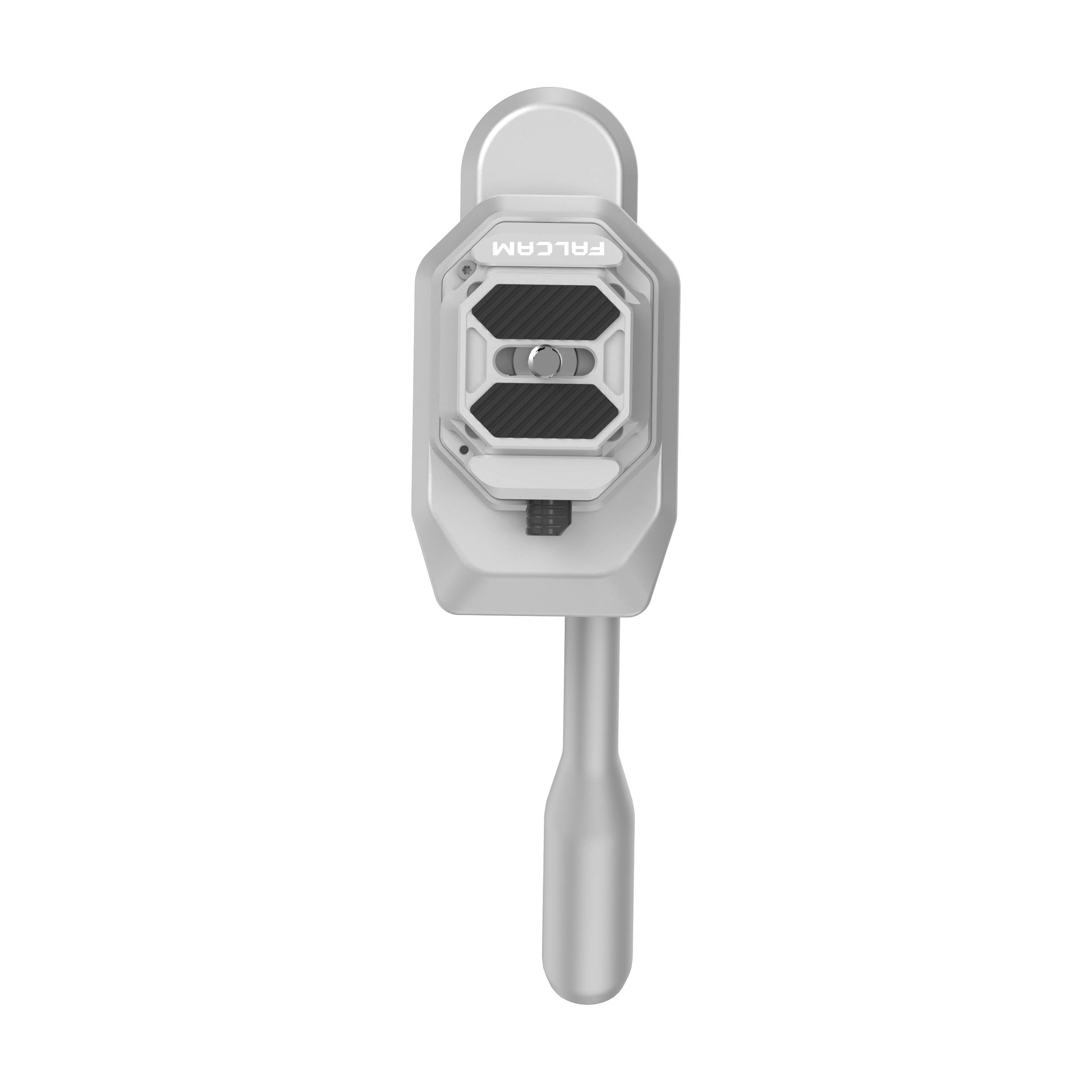

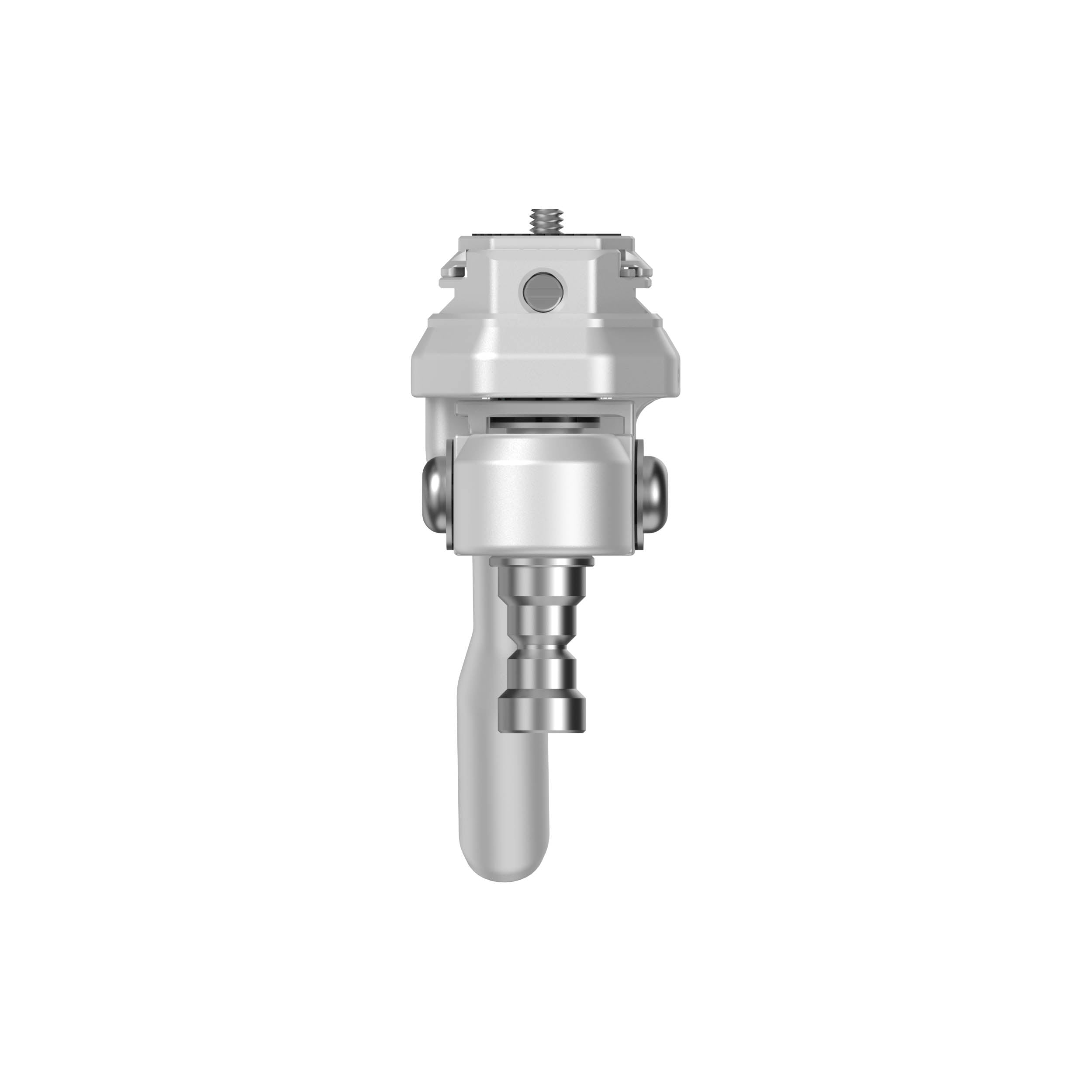

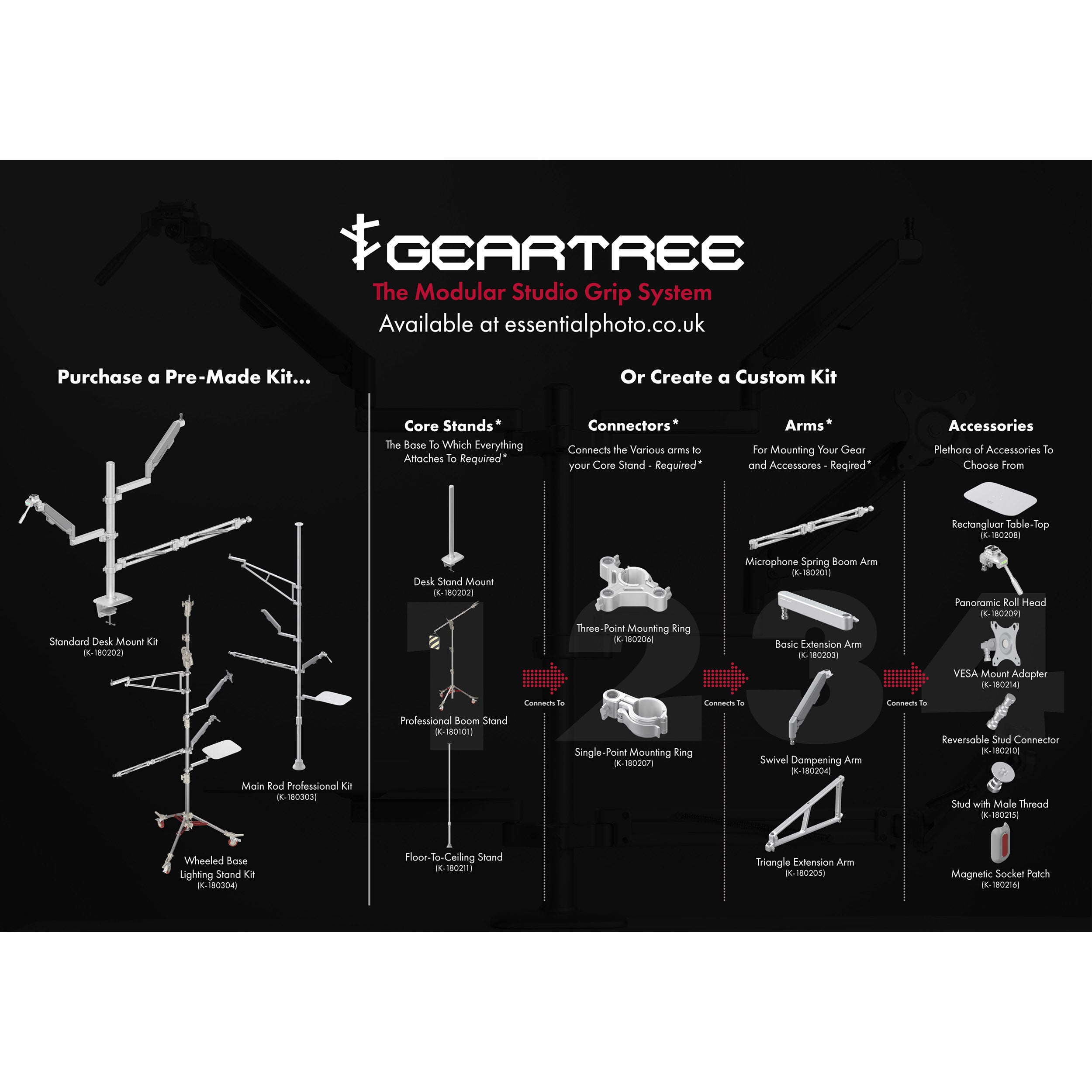

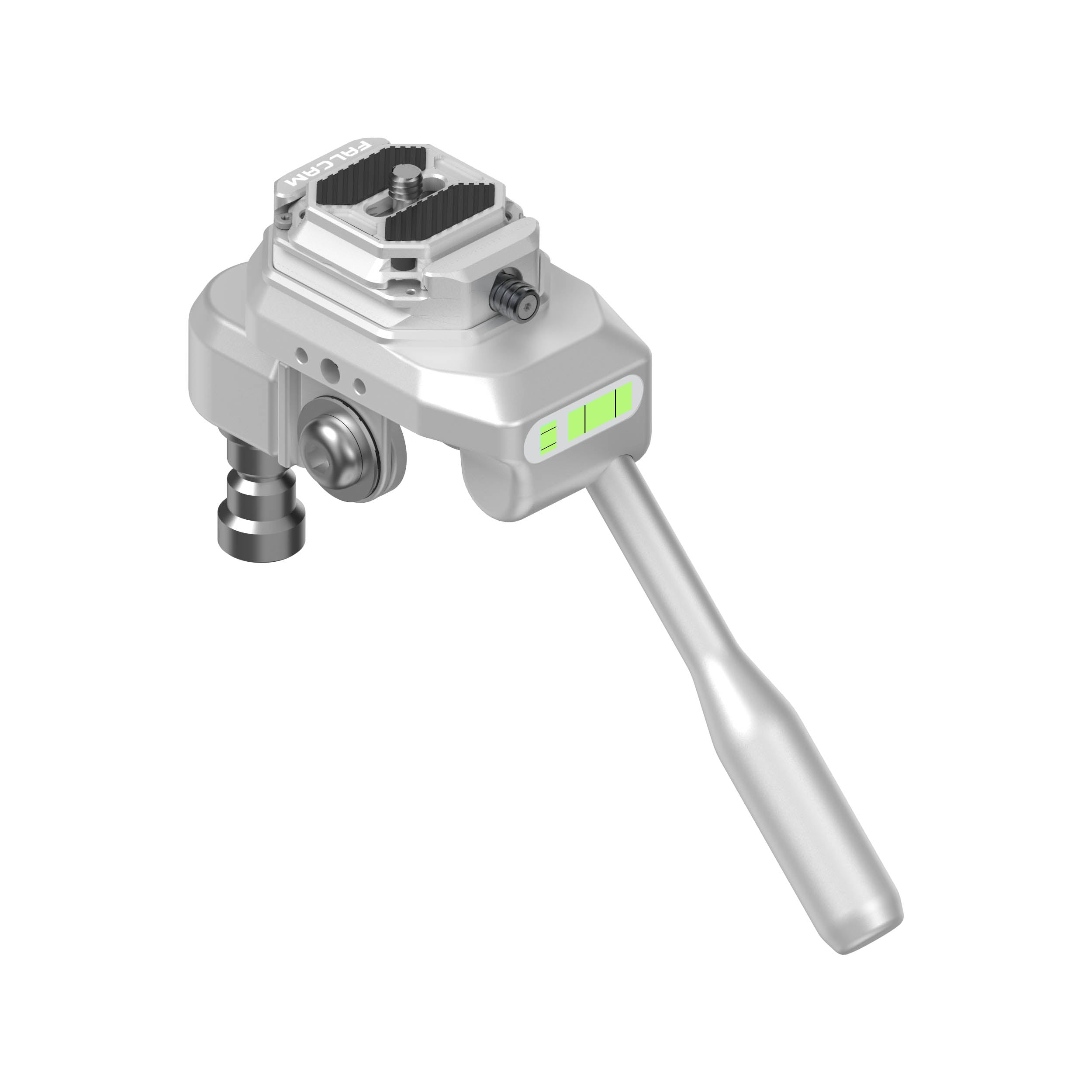

The GearTree 2752 3-Way Panoramic Ball Head with Tightening Arm enables you to mount your camera to the . This 3-way head features Pan, Tilt, and Roll motions, which enable you to easily alter the orientation of your camera for maximum shooting possibilities. Made from high-strength aluminum alloy, it has a maximum load capacity of approximately 3kg. The 3-Way Panoramic Ball Head mounts the GearTree system via a single 16mm spigot, designed to be mounted to one of the accessory arms, such as the Basic Extension Grip Arm, or the Triangle Extension Arm, etc.

3-Axes Rotation

The GearTree 2752 3-way panoramic ball head features three axes of rotation. It features a pan motion, (for panning your camera left and right), tilt motion (for tilting your camera up and down), and roll motion (enabling you to rotate your camera into landscape or portrait orientation). This enables you to position your camera in virtually any direction you require.

Tightening Arm

The GearTree 2752 3-way roll head features a tightening arm, enabling you to lock your camera in place once you have positioned it the way you require.

3kg Load Capacity

The GearTree 2752 3-way panoramic ball head has a maximum load capacity of 3kg, it is also compatible with F380 and F22 cages or F22 and F38 quick release accessories.

The GearTree 2752 is the perfect addition for users of the GearTree system, who want to be able to mount their camera directly to any of the stands in the GearTree system.

Instructions

Screw tight the handle into the 3-way pan/tilt/roll head. Remove the F38 quick release plate, and mount gear onto the plate.

Insert the stud at the end of the adapter into the clamp’s mounting point, and tighten the locking screw. Mount the F38 quick release plate with gears. Adjust the head’s damping with the H5 hex key.
The horizontal bead on the head provides a reference for horizontal level.


Note:
The VESA mount adapter is designed to be used along with the full motion swivel arm, clamp with 1 mounting point, clamp with 3 mounting points, triangle extension arm or basic extension grip arm. The adapter can be mounted on the 15.8mm mounting point.
Remove all loads from the adapter before removing the adapter. Reserve the installation steps when removing the arm.
