The Kupo TV Coupler Barrel clamp has been built for use with heavy-duty lighting equipment. It features a 5/8" (16mm) baby receiver with a spigot stud mount and a 1-1/8" (28mm) Junior receiver, enabling you to mount your studio light fixtures.  The Kupo TV Coupler Barrel clamp is TUV-approved, made from rugged die-cast aluminium, as well as extruded aluminium, with a hinged locking jaw, and a max. load capacity of up to 300kg with the 28mm junior receiver (40kg on the 16mm connection). The Kupo TV barrel Clamp can be mounted stand, scaffold rigs, or ceiling truss system between 48mm and 51mm in diameter. This makes it perfect for rigging heavy light fixtures in TV and broadcasting studios, theatrical productions, and film sets.

TUV-Approved - Rugged Heavy-Duty Construction

The Kupo TV-Coupler Barrel Clamp is TUV-approved. The TV Coupler clamp is made from high-strength die-cast aluminium, as well as extruded aluminium with high tensile strength. The clamp also features a hinged locking jaw, giving it a max. load capacity of up to 300kg on the 28mm Junior-pin connector (40kg on the 16mm baby-pin connector).

5/8" Baby and 1-1/8" Junior Connections

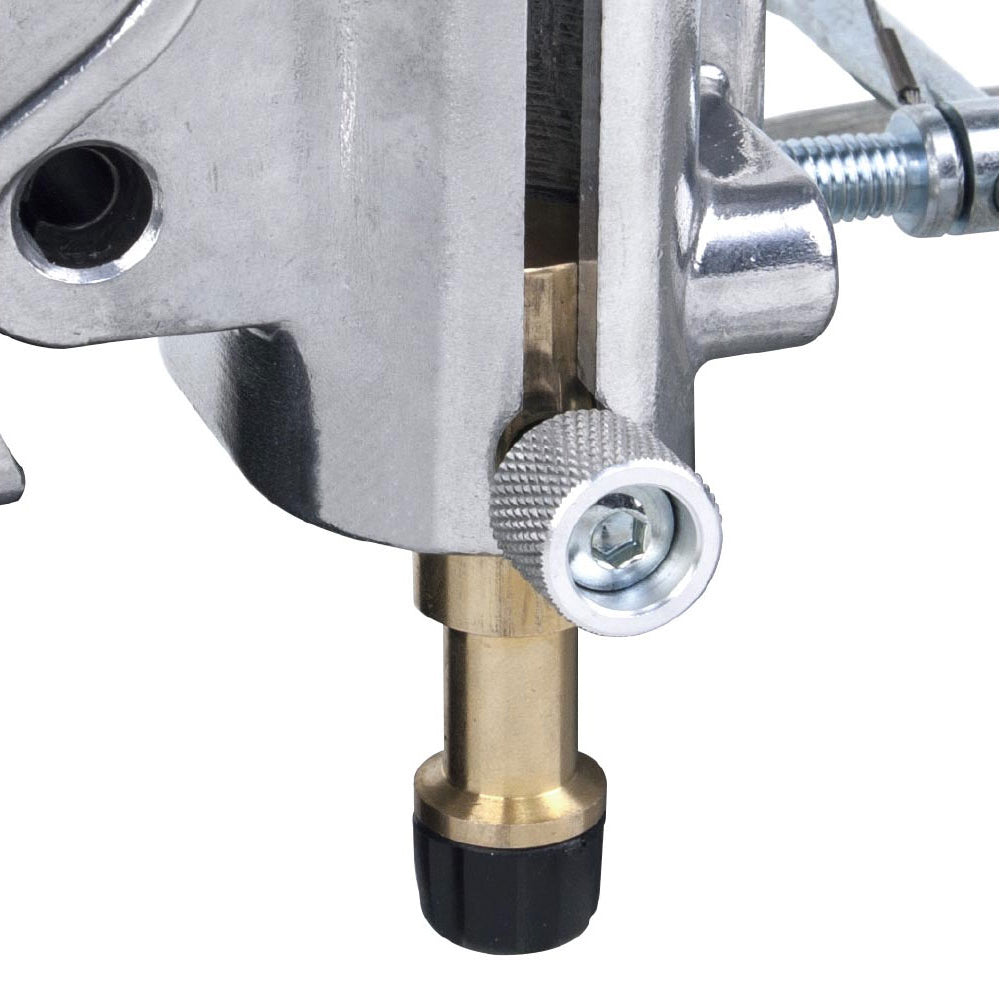

The Kupo TV-Coupler Barrel Clamp features a built-in 5/8" (16mm) receiver, with a retractable spigot stud, as well as a 1-1/8" (28mm) Junior pin receiver, enabling it to be used with virtually any studio light fixture.

Hinged Locking Jaw

The Kupo TV-Coupler Barrel Clamp features a restricted hinged locking jaw, to make single-handed making operation easier. It can be securely mounted to any pole between 48mm and 51mm. This enables you to mount light fixtures and accessories to auto poles, scaffold rigs and ceiling truss systems that feature tubing within that diameter range. It also features a built-in safety cable, ensuring this essential safety aid is always at hand.

The Kupo TV Coupler Barrel clamp has been built for use with is essential for Videographers, Cinematographers, gaffers and DOPS who need a strong, robust clamping system that will enable them to easily rig up studio lighting fixtures, and other accessories.
