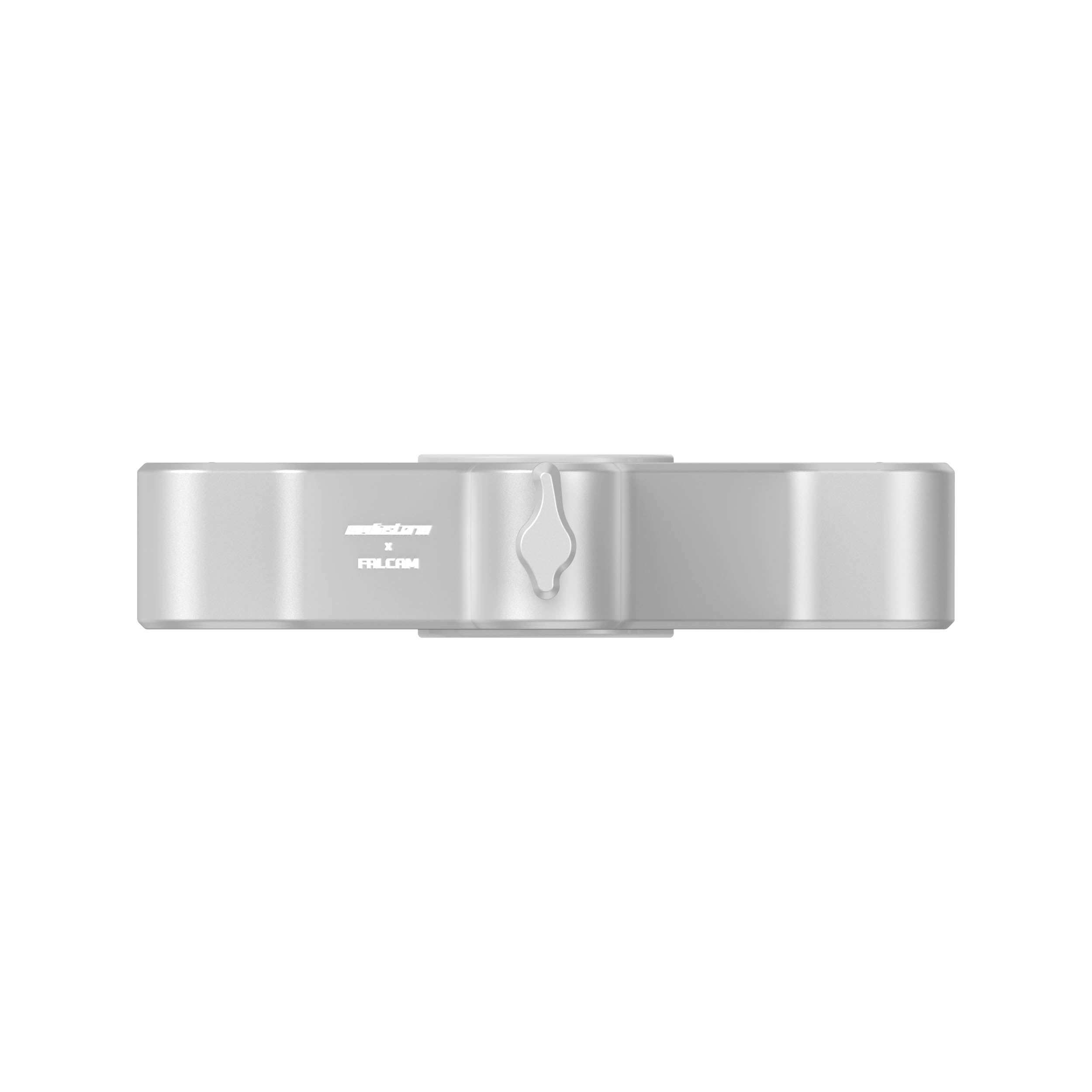

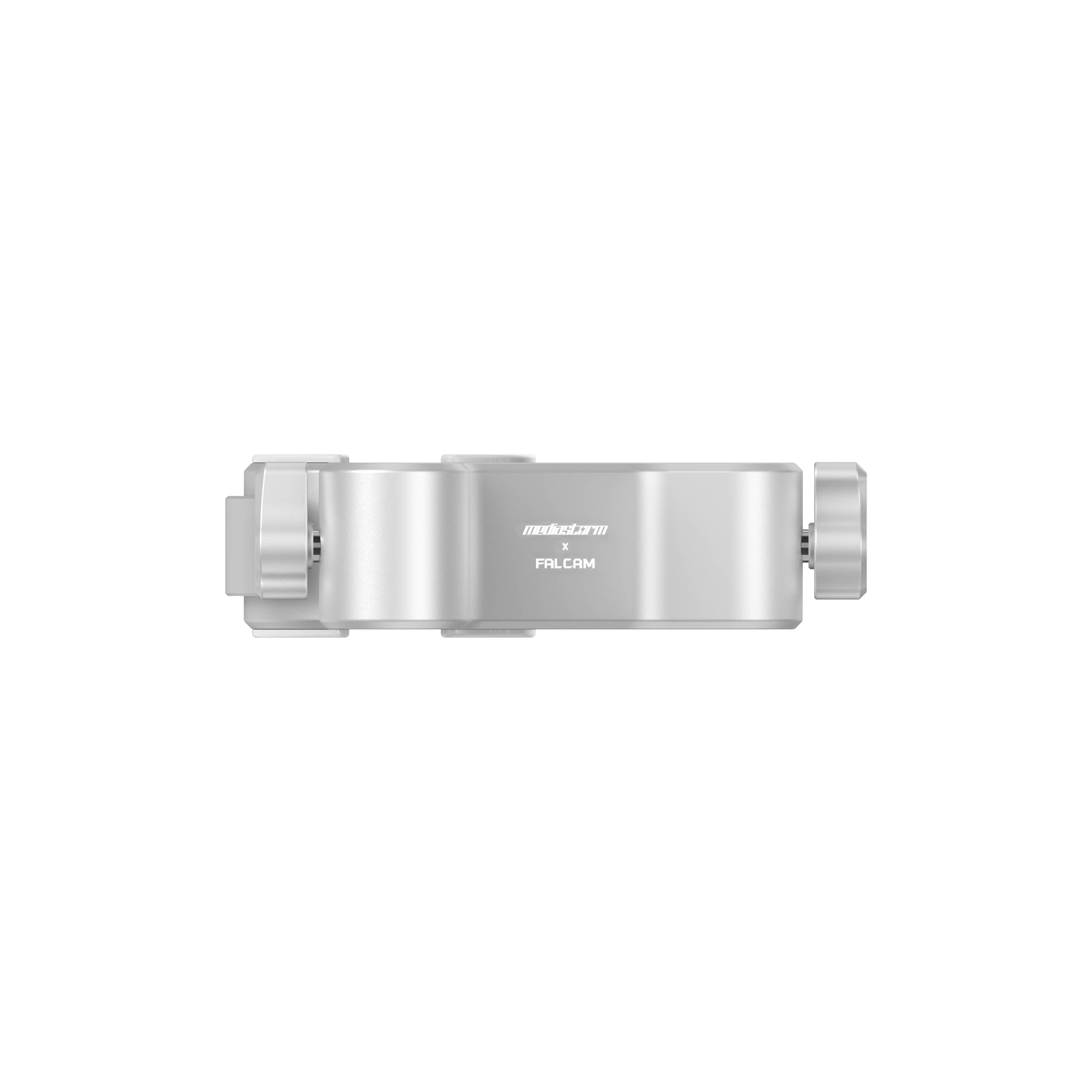

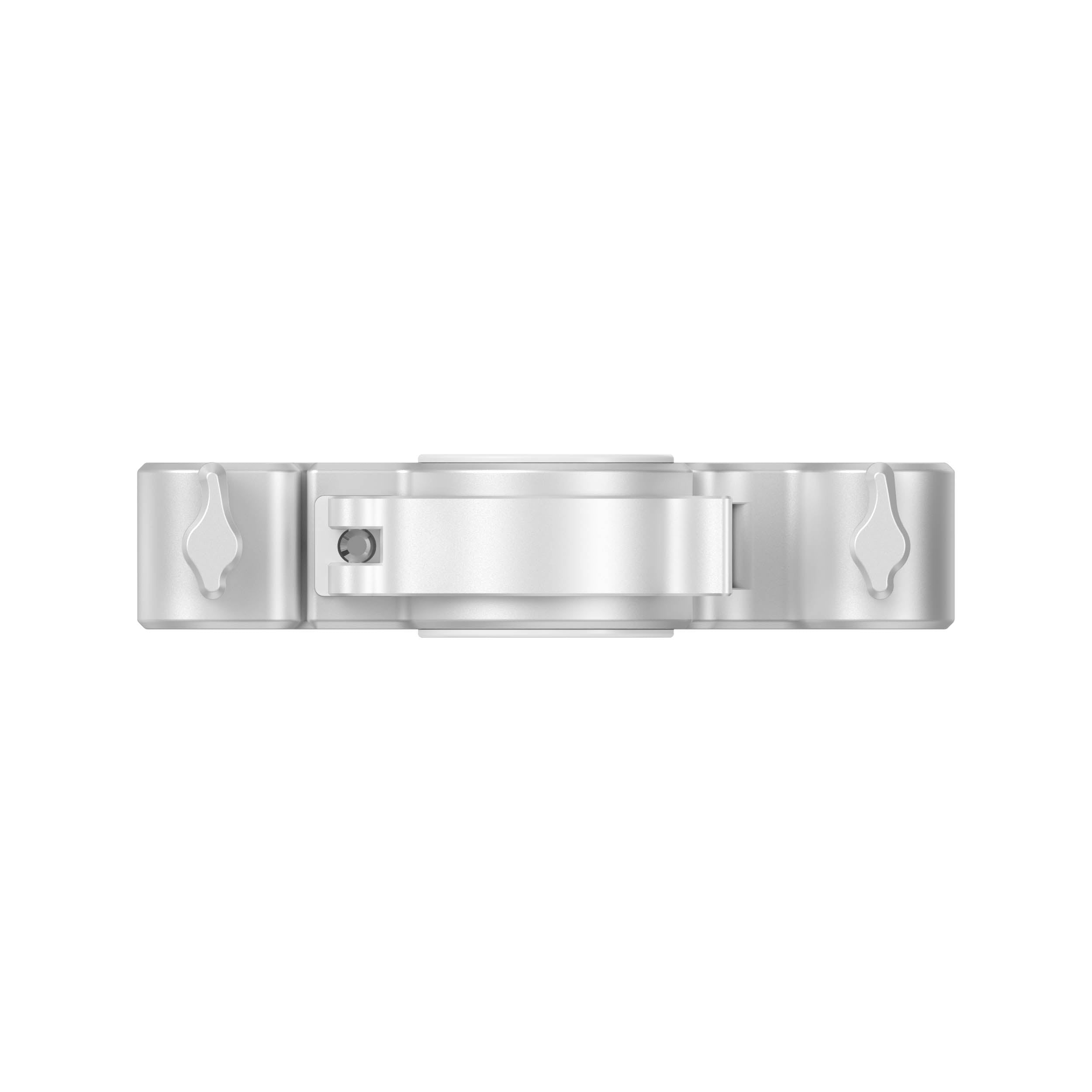

The GearTree 2743 3-Point Mounting Ring Clamp features 3x 16mm spigot receivers to enable you to mount up to three accessory arms at the same level, as the stands in the . With a high-torsional strength of 50 N.m, enabling it to hold the weight of multiple accessory arms in the GearTree system. It can be used with either the Geartree Floor-to-Ceiling stand, the GearTree Desk-Stand, or the GearTree professional boom stand for virtually limitless mounting possibilities.

High Torsional

Made from high-strength aluminium alloy, GearTree 2743 mounting ring clamp has a super-high torsional strength of 50N.m, enabling it to withstand the weight of multiple arms and accessories with the greatest of ease.

Wear-Resistant POM Ring

The GearTree 2743 mounting ring clamp comes with a set of wear-resistant POM rings, enabling the clamp to be adapted for use with poles of 42mm, 40mm, and 35mm, through the use of different washers.  It features three 5/8" stud receivers to fit 1.65, 1.57, and 1.38" diameters of round pipe.

The GearTree 2743 3-Point Mounting Ring Clamp is the glue that holds all the GearTree stands and accessories together. It enables you to mount up to three accessory arms to either the GearTree floor-to-ceiling stand, the Geartree Desk-Stand, or the Geartree Professional Boom Stand. An essential accessory for owners of the GearTree studio grip system.

Instructions

Put the gasket into the inner wall of the clamp
Wrap around the stand with the clamp
Check if the gasket is at the center of the clamp’s inner wall.
Insert the quick release knob’s screw into the hole while keeping know downwards.Turn the knob clockwise about 90 degrees, and press it down to lock.

Note:

Remove all loads from the arm before installing, removing or adjusting the clamp.
