The Blackmagic Design MultiView 16 is the world's first native Ultra HD multi-viewer, offering double the image sharpness on an Ultra HD monitor, even if your facility isn't using Ultra HD yet. It lets you connect up to 16 SD, HD, and Ultra HD SDI sources to one display. Choose from 4, 9, or 16 views, with each input featuring a full-frame re-synchronizer, allowing any combination of SD, HD, and Ultra HD sources simultaneously.

Incredibly Sharp Monitoring

With Ultra HD consumer TVs now available, you can leverage their high resolution for sharp, low-cost multi-view monitoring. The Blackmagic MultiView 16 is highly flexible, letting you choose from 2x2 (4 sources), 3x3 (9 sources), or 4x4 (16 sources) layouts, all controlled from the front panel. It supports any combination of SD, HD, and Ultra HD inputs simultaneously, essentially giving you 16 independent broadcast monitors on one display.

Studio or Live Use

Multi-view monitoring is perfect for both large control rooms with numerous feeds and tight on-location spaces with limited room for monitors. The Blackmagic MultiView 16 is ideal for live production, control rooms, post facilities, and more. It eliminates the need for multiple monitors, cables, and extra power. Simply connect your cameras, decks, switchers, routers, and feeds via SDI, and view all your sources with exceptional clarity on a single Ultra HD monitor.

Use HD or Ultra HD Monitors

MultiView 16 is compatible with both HD and Ultra HD displays, offering maximum flexibility. Use an Ultra HD monitor for stunning sharpness, with four times the pixel density per view. On a 2x2 layout, each view delivers 1920x1080 HD resolution, while a 4x4 layout still provides 960x540 pixels per view. It includes 6G-SDI and HDMI outputs for easy connection to TVs, projectors, and broadcast monitors.

Elegant Design

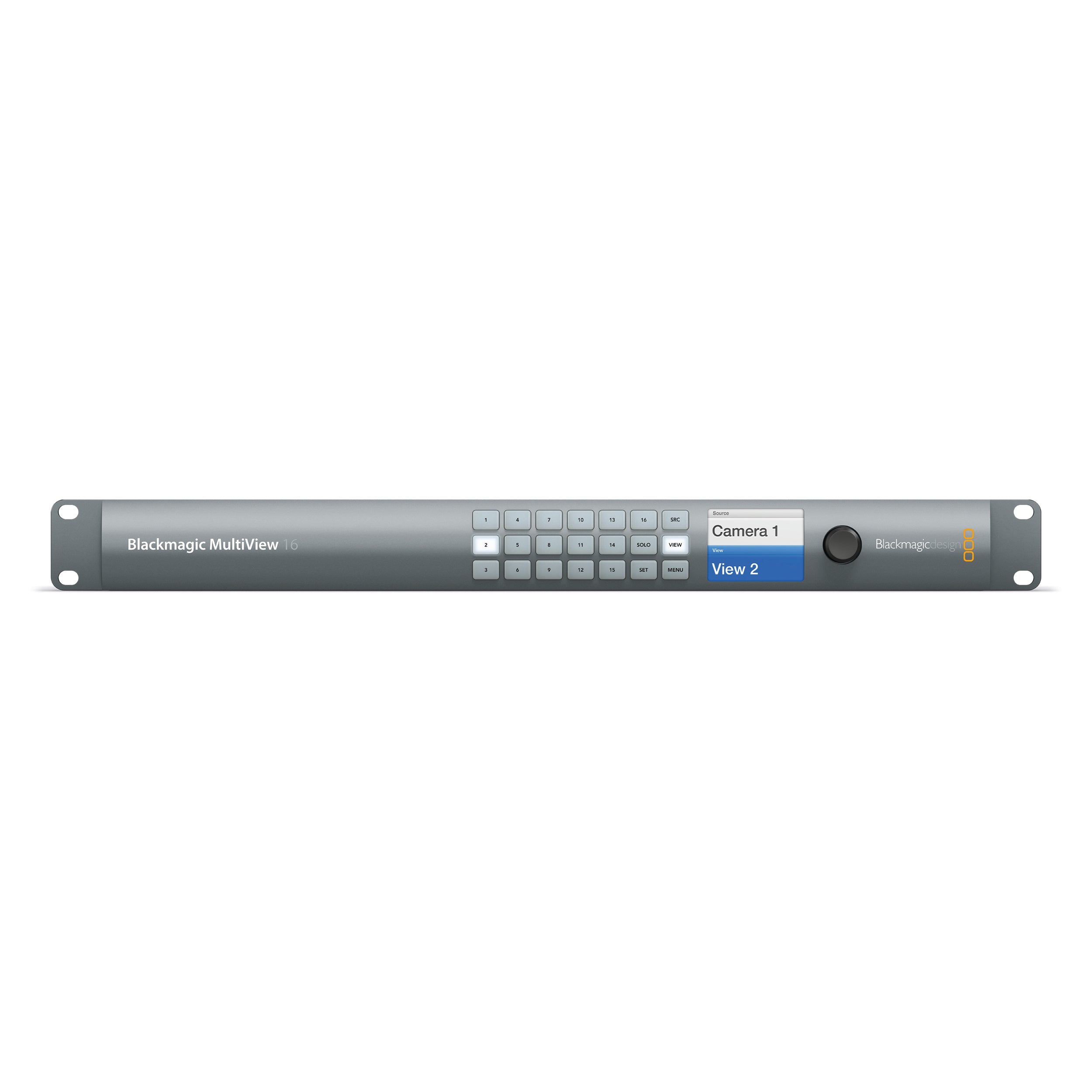

The compact, machined metal 1U design of MultiView 16 makes it easy to use, with front-panel buttons for quick source selection and routing to any grid position. The spin knob control functions like a video router, and the SOLO button allows full-screen monitoring of any source. It also includes a built-in multi-voltage AC power supply and professional 6G-SDI input connections with loop-through for easy integration into any facility.

6G-SDI Multi Rate SDI Connections

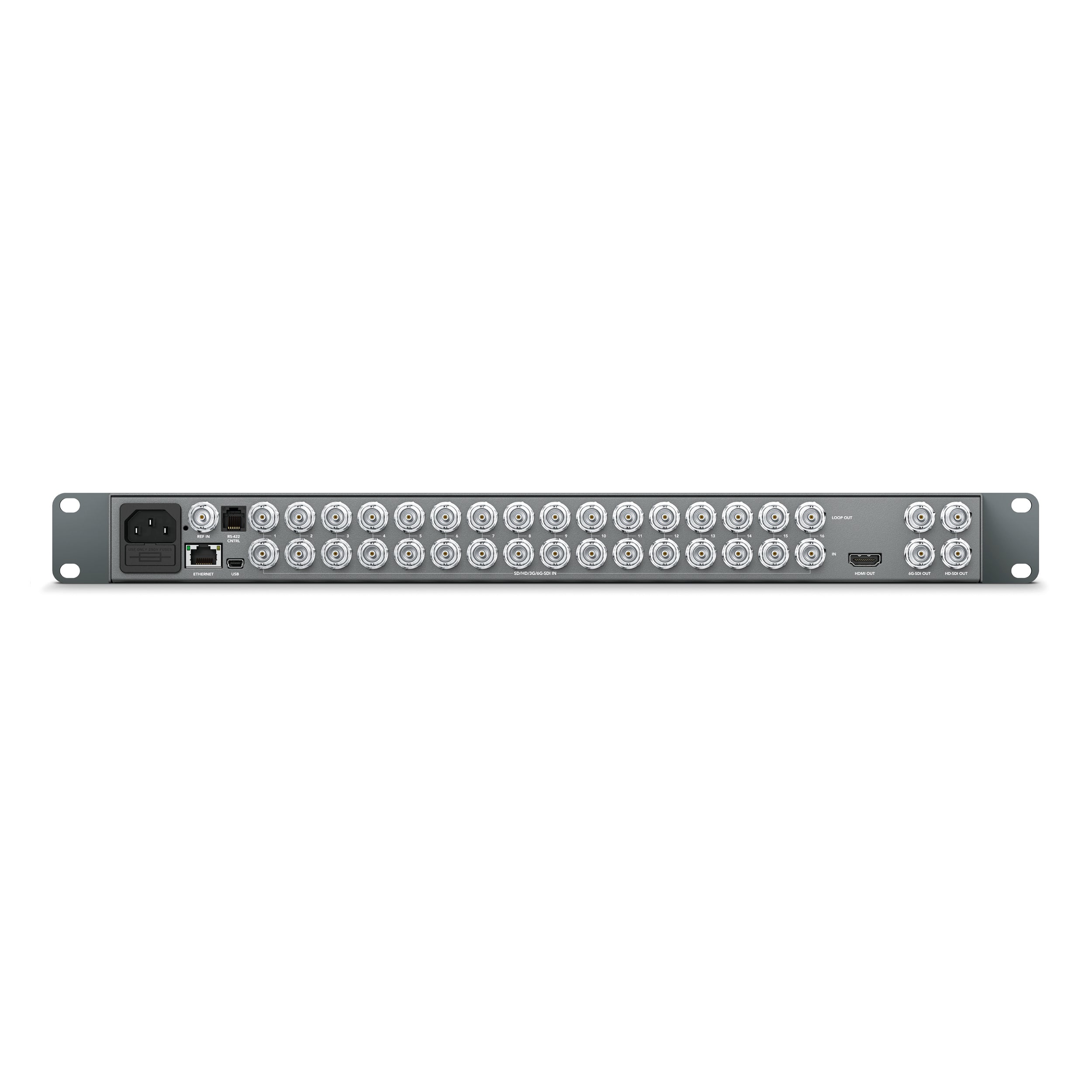

MultiView 16 offers sixteen 6G-SDI inputs with separate loop-through, compatible with SD, HD, and Ultra HD equipment. Each input acts as an independent video monitor, allowing up to 16 different video standards to run simultaneously. Automatic re-sync supports mixing non-referenced SD, HD, and Ultra HD sources. A reference input is also included for connecting to other studio equipment.

External “Router” Control

MultiView 16 features Ethernet support for Blackmagic Videohub router protocol, ensuring full compatibility with Videohub software and hardware for routing inputs to any view. It can also be controlled remotely via the included software for Mac or Windows, allowing you to adjust settings and add on-screen labels if access to the front panel is limited.

Designed for Efficient Workflow

The interactive front panel of MultiView 16 allows easy display mode adjustments and input rearrangement when mounted in desks. For installations behind monitors, it can be remotely controlled via Ethernet.

Live Production Applications

Monitor all your cameras on a single TV with Blackmagic MultiView 16, perfect for live production workflows on location or in the field. Compact, lightweight, and portable, it’s ideal for flyaway kits or broadcast trucks. The Ultra HD output provides high-resolution clarity, allowing precise focus checks and quick identification of technical issues during critical live production.

International AC Power

The built-in power supply supports 90V to 240V AC, making MultiView 16 ready for international use. It’s perfect for broadcast trucks and flyaway kits that move between countries with different voltages, thanks to its premium multi-voltage power supply.

Please note, this particular product is part of our “Special Order” selection, so we may not hold stock for this, and is placed to order. If you are interested in this item, you can place this order as a Pre-Order, and we will Special Order your product directly from the manufacturer. This should take approximately 1-2 Working Weeks to be delivered, but please note this is subject to change.
