The BM-245-NDI Broadcast Monitor by SWIT is a 23.8-inch QLED display with 100% DCI-P3 coverage, perfect for professional NDI® broadcasts. It supports 4K NDI® monitoring, auto-detection of NDI® sources, and various display modes such as PBP and PIP. With built-in 3DLUT calibration software, it can automatically calibrate for accurate colour reproduction.

21.5-Inch QLED WCG Panel

The SWIT BM-245-NDI monitor is the perfect choice for professional NDI® broadcast productions. With a 21.5-inch 1920x1080 QLED panel, 100% DCI-P3 coverage, 400nits LED backlight, and 178° viewing angle, this monitor offers outstanding image quality and accurate colour reproduction. Get the job done with excellence and precision.

NDI, SDI and HDMI

The Swit BM-245-NDI monitor Features  multiple inputs including:

• High bandwidth NDI® up to 4K;
• 3GSDI input×2; Loop out×1
• NDI® decode to 3GSDI out ×1
• HDMI® 2.0 input ×1

NDI is a registered trademark of Vizrt Group.

NDI Sources Selection

When connected to the NDI® network, this monitor will automatically detect all sources and allow for easy selection from the menu. It also supports Discover Server for accessing NDI® sources from various IP segments and has NDI® low bandwidth mode capabilities.

PBP / PIP Display Mode

Two sources from NDI®, SDI or HDMI® can be displayed simultaneously in either Pic-by-Pic mode or Pic-in-Pic mode.

HDR/SDR EOTFs and Color Gamut Selection

The BM-245-NDI offers professional-grade features such as HLG, Dolby Vision, SONY S-Log3 HDR, and various EOTFs and colour gamut selections. This 23.8" QDLED broadcast monitor is a must-have for industry experts and delivers stunning image quality and colour accuracy for a variety of production needs.

3DLUT Auto Self-Calibration

Featuring integrated 3DLUT software for calibration, the monitor allows a direct connection with the USB port through X-rite i1 and Jeti Specbos 1211 probes. Colour patterns are generated by the monitor and read by the probes via USB to automatically generate a 3DLUT and calibrate itself. Calibration times are 15 minutes for X-rite i1 and 45 minutes for Specbos 1211, with a resulting colour difference of ∆E≤1.0.

VICO 1.97 Eye Protect

The BM-245-NDI monitor utilizes a QLED panel with a Quantum Dot layer positioned between the LCD screen and LED backlight. This layer adjusts the LED spectrum to decrease blue light and balance the R/G/B peaks, providing evenly stimulated cone cells and effectively reducing visual fatigue.

It received a high score of 1.97 in VICO (Visual Health and Comfort) testing and is classified as A class. It is designed to protect your eyes during long periods of video editing and broadcast studio productions.

Multiple Video Analysis Patterns

Audio Patterns

• BM-245-NDI monitor will de-embed
• 2-ch NDI audio;
• 8-ch HDMI® audio;
• 16-ch SDI audio,
• display audio meters and Lissajous patterns, and select any 2 channels of audio to output via speaker or 3.5mm headphone socket.

Webserver IP Remote Control

BM-245-NDI enables web-based control through an Ethernet LAN connection. Simply access the monitor control panel through a web browser to adjust input sources, picture parameters, video/audio functions, and assign function keys. No additional app installation is required, with the option for future firmware updates.

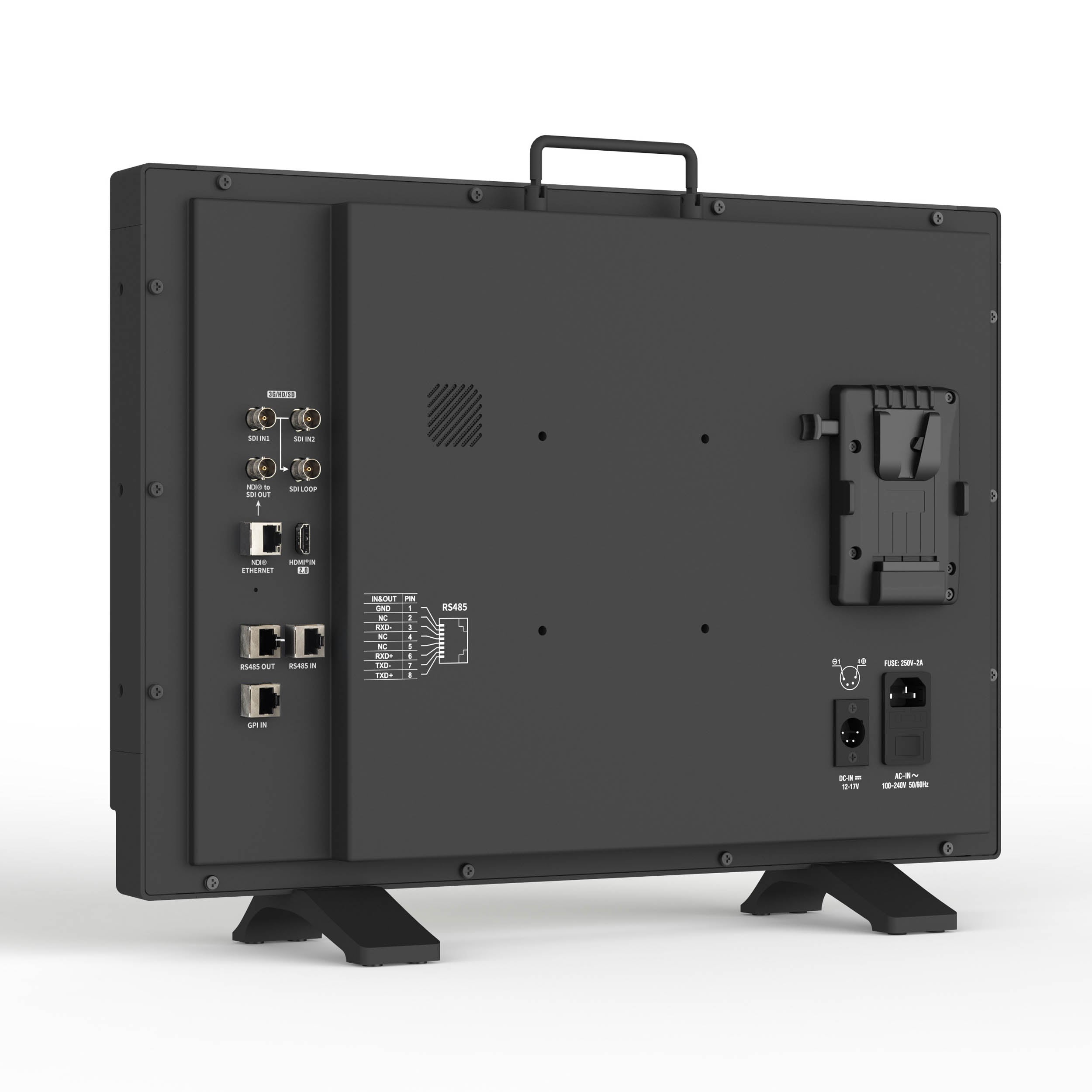

Power Supply

Introducing the SWIT BM-245-NDI, a 23.8" professional NDI® QDLED broadcast monitor that offers a low power consumption of just 45W and supports multiple power input options for maximum versatility. With a V-mount battery plate on the rear panel and an optional gold mount, this monitor is perfect for on-the-go productions.

Please note, from 4th September 2024, due to the unique design & packaging of this product, this item will feature a 14-day return Period if it remains unopened & in its sealed packaging. Once this item has been unsealed and opened, it is no longer covered by our returns policy.

Please Note: this particular product is part of our “Special Order” selection, so we may not hold stock for this and is placed to order. If you are interested in this item, you can place this order as a Pre-Order, and we will Special Order your product directly from the manufacturer. This should take approximately 2-4 Working Weeks to be delivered, but please note this is subject to change.
